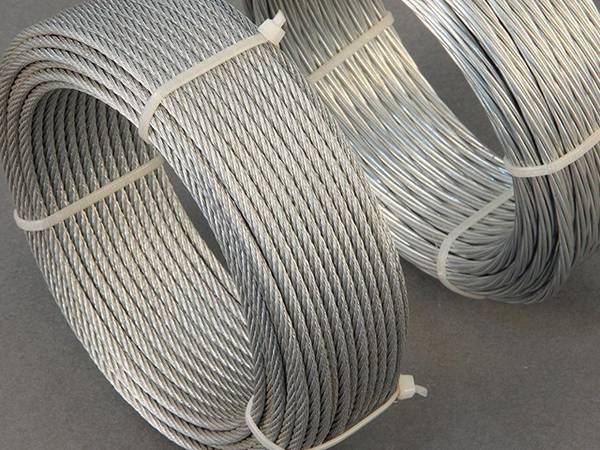

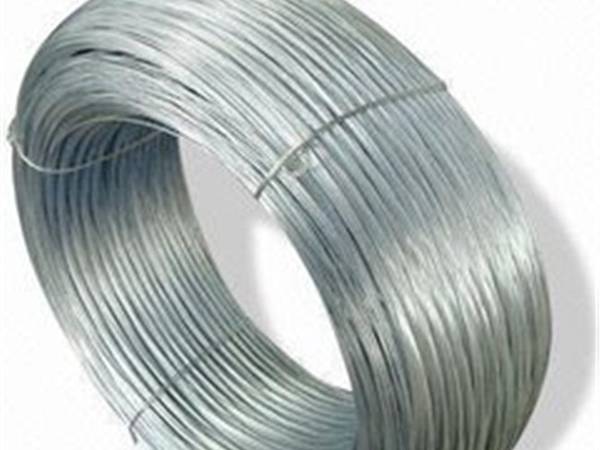

Galvanized Stranded Wire

Construction: .031- .034 diameter 1 × 7 Galvanized Stranded Wire .011 / .012

Coating type: Zinc Electro galvanized MSG; SFX P/N SGA – 07032018CG

Reel specification:

• 18" Large hub wood spools
• 60lbs. maximum spool weight
• 30" outer diameter of wood hub
• 6 spools per skid
• NO splices or joins in spools
• Minimum breaking strength= 185lbs.
• Final Lay (Pitch) Length=  .291 -  .309
• Final Lay (Pitch) Direction= Left
• "C' cast= 2" maximum in 36" sample
• "S" cast= 0.5" maximum amplitude laid flat
• End cut= No fray
• Tightening twist = 0–2
