7 × 19 (Shown Vinyl Coated)
Galvanized & Stainless Steel Wire Rope is widely used for accelerator and brake and control of motor vehicle, motor cycle, brake control of bicycle, machinery for light industry household electrical appliance control and equipment by wire rope of mini diameter.
7 × 19 (Shown Vinyl Coated)

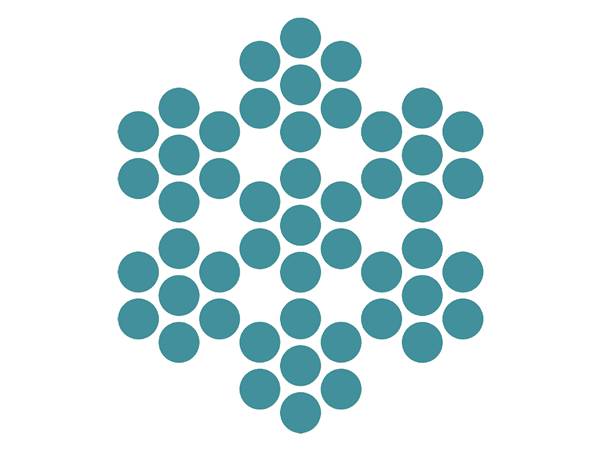

7 × 7 (Shown Vinyl Coated)
Galvanized Wire Rope
Diameter in Inches |
Construction | Minimum Break Strength/Lbs. |
Rated Load/Lbs. |
WT. Per 100 Ft./ Lbs. |
---|---|---|---|---|
1/16 | 7 × 7 | 480 | 100 | .8 |
3/32 | 7 × 7 | 920 | 180 | 1.6 |
1/8 | 7 × 7 | 1,700 | 340 | 2.8 |
1/8 | 7 × 19 | 2,000 | 400 | 2.9 |
5/32 | 7 × 7 | 2,600 | 520 | 4.3 |
5/32 | 7 × 19 | 2,800 | 560 | 4.5 |
3/16 | 7 × 7 | 3,700 | 740 | 6.2 |
3/16 | 7 × 19 | 4,200 | 840 | 6.5 |
7/32 | 7 × 19 | 5,600 | 1,120 | 8.6 |
1/4 | 7 × 19 | 7,000 | 1,400 | 11.0 |
9/32 | 7 × 19 | 8,000 | 1,600 | 13.9 |
5/16 | 7 × 19 | 9,800 | 1,960 | 17.3 |
3/8 | 7 × 19 | 14,400 | 2,880 | 24.3 |
Stainless Steel Wire Rope
Diameter in Inches |
Construction | Minimum Break Strength/Lbs. |
Rated Load/Lbs. |
WT. Per 100 Ft./ Lbs. |
---|---|---|---|---|
1/16 | 7 × 7 | 480 | 100 | .8 |
3/32 | 7 × 7 | 920 | 180 | 1.6 |
1/8 | 7 × 7 | 1,700 | 340 | 2.8 |
1/8 | 7 × 19 | 1,760 | 350 | 2.9 |
5/32 | 7 × 7 | 2,600 | 520 | 4.3 |
5/32 | 7 × 19 | 2,400 | 480 | 4.5 |
3/16 | 7 × 7 | 3,700 | 740 | 6.2 |
3/16 | 7 × 19 | 3,700 | 740 | 6.5 |
7/32 | 7 × 19 | 5,000 | 1,000 | 8.6 |
1/4 | 7 × 19 | 6,400 | 1,280 | 11.0 |
9/32 | 7 × 19 | 7,800 | 1,560 | 13.9 |
5/16 | 7 × 19 | 9,000 | 1,800 | 17.3 |
3/8 | 7 × 19 | 12,000 | 2,400 | 24.3 |
Vinyl Coated (Galvanized)
Diameter in Inches |
"Coated To" | Construction | Minimum Break Strength/Lbs. |
Rated Load/Lbs. |
WT. Per 100 Ft./ Lbs. |
---|---|---|---|---|---|
3/32 | 3/16 | 7 × 7 | 920 | 180 | 3 |
1/8 | 3/16 | 7 × 7 | 1,700 | 340 | 4 |
1/8 | 3/16 | 7 × 19 | 2,000 | 400 | 4 |
3/16 | 1/4 | 7 × 19 | 4,200 | 840 | 9 |
1/4 | 5/16 | 7 × 19 | 7,000 | 1,400 | 14 |
3/16 | 7 × 7 | 3,700 | 740 | 6.2 | |
3/16 | 7 × 19 | 4,200 | 840 | 6.5 | |
7/32 | 7 × 19 | 5,600 | 1,120 | 8.6 | |
1/4 | 7 × 19 | 7,000 | 1,400 | 11.0 | |
9/32 | 7 × 19 | 8,000 | 1,600 | 13.9 | |
5/16 | 7 × 19 | 9,800 | 1,960 | 17.3 | |
3/8 | 7 × 19 | 14,400 | 2,880 | 24.3 |
