Galvanized Steel Rope

Galvanized steel wire rope is widely used in many fields. We can provide different types and specifications.

Some types and sizes of wire rope including diameter, fiber and weight.

Galvanized wire rope sizes are in here:

Fiber core RD Ø / mm Weight kg/mm2 /unit
6 × 7 + 1 2.00 160
6 × 7 + 1 2.50 160
6 × 7 + 1 3.00 160
6 × 7 + 1 4.00 160
6 × 7 + 1 5.00 160
6 × 7 + 1 6.00 160
6 × 19 + 1 3.00 160
6 × 19 + 1 4.00 160
6 × 19 + 1 5.00 160
6 × 19 + 1 6.00 160
6 × 19 + 1 8.00 160
6 × 19 + 1 9.50 160
6 × 19 + 1 13.00 160

Special size can be manufactured according to your need.

  1. Galvanized steel wire rope with construction 7 × 7 with T/S 1770 N/mm2 , Right hand regular lay
    Size 0.8mm, 1mm, 1.2mm, 1.5mm, 1.8mm, 2mm, 2.5mm, 3mm, 4mm, 5mm.
  2. Galvanized steel wire rope 6 × 19 IWRC (Independent wire rope core ), RHRL( Right Hand Regular Lay), T/S 1770N/mm2, according to EN 12385-4,
    Size: 6mm, 8mm, 10mm.
  3. Galvanized steel wire rope with construction 6 × 7 (1 × 19) with T/S 2180 N/mm2, Right hand regular lay
    Exactly 4.8mm.
  4. Galvanized steel wire rope 6 × 12 + 7FC, RHRL( Right Hand Regular Lay), T/S 1770/mm2 , according to EN 12385:4 , packing in ply wooden reels/1000 meters.
    size 6mm, 8mm, 10mm, 12mm, 14mm, 16mm.
  5. 9 × 7 none -Rotating Ungalvanized Steel Wire Rope, RHRL, T/S :1770N/MM2, According to EN 12385:4, Packing in strong wooden reels/1000 meters
    size: 8mm, 10mm.
  6. Ungalvanized steel wire rope 6 × 37 IWRC (Independent wire rope core ), RHRL( Right Hand Regular Lay), T/S 1770N/mm2, according to EN 12385:4 , packing in strong wooden reels/1000 meters.
    size 8mm, 10mm, 12mm, 14mm, 16mm.
  7. Ungalvanized steel wire rope 6 × 12 + 7FC, RHRL ( Right Hand Regular Lay), T/S 1770/mm2, according to EN 12385:4, packing in ply wooden reels/1000 meters.
    Size 6mm, 8mm, 10mm, 12mm, 14mm, 16mm.
Galvanized steel Rope

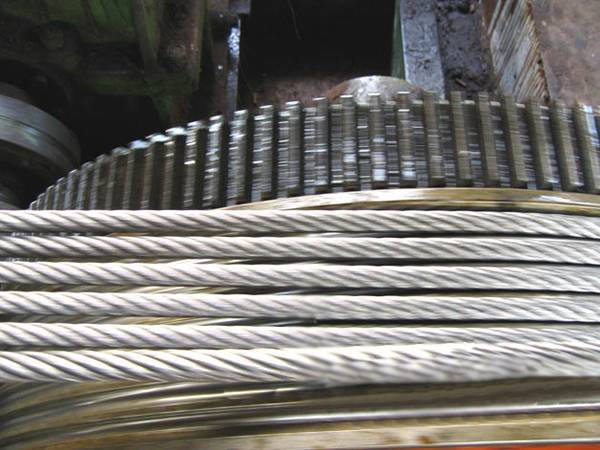

Galvanized steel Rope details
Galvanized Wire Rope

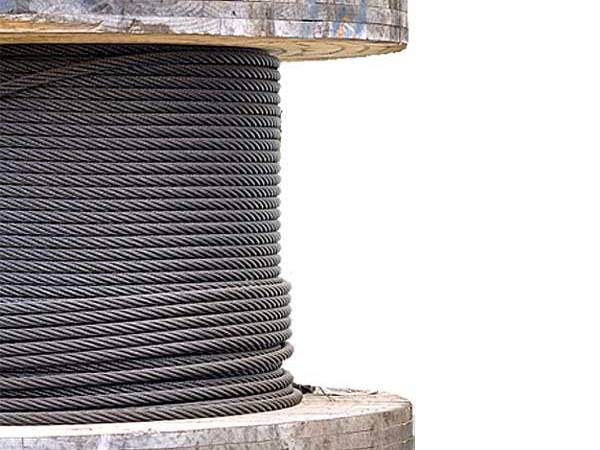

Galvanized Wire Rope on roll
