Wire Rope Sling used for heavy lifting operations
Large Loads Require Large Slings Whatever the load you are lifting. YuanBo Wire Rope Factory can supply a steel wire rope sling to do the task. Sling up to 12" (305mm) diameter can be supplied with minimum braking loads up to tons. There are three distinct types of Wire Rope Sling.
- Slings manufactured from cable laid ropes, 4" diameter to 12" diameter. hand spliced or by combination of hand splicing and socketing with eye at each end.
- True endless cable laid grommet slings. with eyes seized in each end.
- Slings manufactured from 6 strand equal laid ropes. up to 3.5 " diameter with soft eyes spliced each end. terminated by either hand splicing or mechanical means.
WRS-1: Stainless steel wire rope sling.
WRS-2: A wire rope sling with 320 mm length.
WRS-3: Aluminum ferrules length is 320 mm.
WRS-4: Stainless steel wire rope sling eye
WRS-5: Stainless steel wire rope sling eyes.
WRS-6: Wire rope slings bundles.
Our factory can offer both Hand spliced and our methods of terminating cable laid slings. The Wire Rope Sling offers the following advantages:
- Slings can be manufactured to closer length tolerance than those normally quoted for hand splicing.
- The Stretch of the eye and termination is reduced because there are no splicing tucks which will pull down under load.
- Slings of shorter length can be produced. again because there is length of splice to be considered.
- Wire Rope Sling offers 90% terminal each efficiency as against 75% with conventional hand spliced cable laid slings.
The most common size: wire rope slings having soft eyes at both end used for heavy lifting operations with safety factor of 7, length 6m, 12m, 16m, 20m, and the swl from 5 ton to 40 ton.
| Diam. of Rope in. |
Min. Length (SL) of Sling ft.-in. |
Loop Dimensions |
Rated Capacities in Tons (2000lbs) |
| IPS Rope--IWRC |
EIPS Rope--IWRC |
| * Choker Hitch |
Single Leg Vertical |
\Basket Hitch**\ |
* Choker Hitch |
Single Leg Vertical |
Basket Hitch** |
| W in. |
L in. |
60° |
45° |
30° |
60° |
45° |
30° |
| 1/4 |
1-6 |
2 |
4 |
.42 |
.56 |
.97 |
.79 |
.56 |
.48 |
.65 |
1.1 |
.91 |
.65 |
| 3/8 |
2 |
3 |
6 |
.93 |
1.2 |
2.1 |
1.8 |
1.2 |
1.1 |
1.4 |
2.5 |
2.0 |
1.4 |
| 1/2 |
2-6 |
4 |
8 |
1.6 |
2.2 |
3.8 |
3.1 |
2.2 |
1.9 |
2.5 |
4.4 |
3.6 |
2.5 |
| 5/8 |
3 |
5 |
10 |
2.5 |
3.4 |
5.9 |
4.8 |
3.4 |
2.9 |
3.9 |
6.8 |
5.5 |
3.9 |
| 3/4 |
3-6 |
6 |
12 |
3.6 |
4.9 |
8.4 |
6.9 |
4.9 |
4.2 |
5.6 |
9.7 |
7.9 |
5.6 |
| 7/8 |
4 |
7 |
14 |
4.9 |
6.6 |
11 |
9.3 |
6.6 |
5.7 |
7.6 |
13 |
11 |
7.6 |
| 1 |
4-6 |
8 |
16 |
6.4 |
8.5 |
15 |
12 |
8.5 |
7.4 |
9.8 |
17 |
14 |
9.8 |
| 1 1/8 |
5 |
9 |
18 |
7.8 |
10 |
18 |
15 |
10 |
9.0 |
12 |
21 |
17 |
12 |
| 1 1/4 |
5-6 |
10 |
20 |
9.2 |
12 |
21 |
17 |
12 |
11 |
15 |
29 |
21 |
15 |
| 1 3/8 |
6 |
11 |
22 |
11 |
15 |
25 |
21 |
15 |
13 |
18 |
31 |
25 |
18 |
| 1 1/2 |
7 |
12 |
24 |
13 |
17 |
30 |
25 |
17 |
16 |
21 |
39 |
30 |
21 |
| 1 3/4 |
8 |
14 |
28 |
18 |
24 |
43 |
35 |
25 |
21 |
28 |
49 |
40 |
28 |
| 2 |
9 |
16 |
32 |
23 |
30 |
55 |
45 |
32 |
28 |
37 |
63 |
52 |
37 |
| 2 1/4 |
10 |
18 |
36 |
30 |
40 |
69 |
56 |
40 |
35 |
44 |
77 |
63 |
44 |
| 2 1/2 |
11 |
20 |
40 |
36 |
48 |
84 |
68 |
48 |
42 |
54 |
94 |
77 |
64 |
| 2 3/4 |
12 |
22 |
44 |
43 |
58 |
101 |
82 |
58 |
50 |
67 |
116 |
94 |
67 |
| 3 |
13 |
24 |
48 |
51 |
68 |
118 |
97 |
68 |
59 |
79 |
136 |
111 |
79 |
WRS-5: Stainless steel wire rope sling eyes.
WRS-6: Wire rope slings bundles.

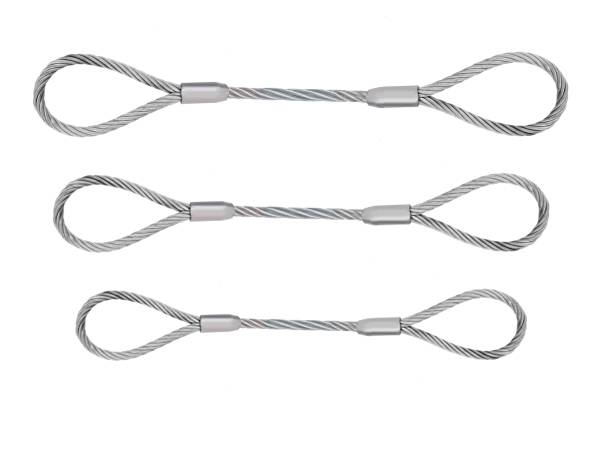

Swaged soft eyes slings (as the above picture) dia. 20mm - 50mm, length 2m - 10m.

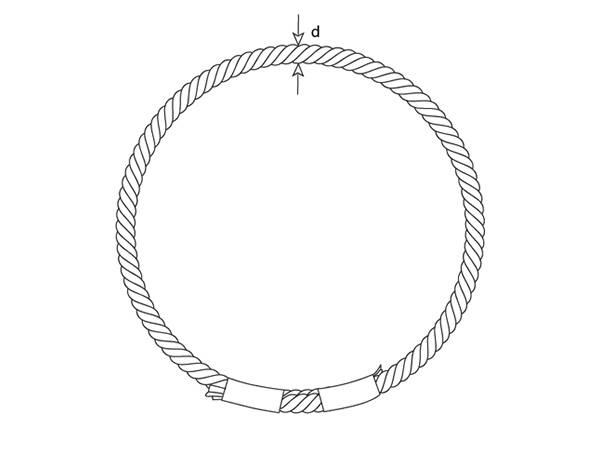

Endless wire ropes slings (shown as the right picture) dia. 20mm - 48mm, and length 5m - 20m.
