Specialized Wire Rope
There are two kinds of Specialized Wire Rope. One is zine-plating and the other is bright wire rope its advantages are as follows, no stress , no relaxation less extensibility. The technology is ripe. The Specialized Wire Rope widely used for miner, metallurgy, cool, forestry, transportation industries. It is a good material for lift, towing tie.
| Stru |
Spec
(mm) |
Tensile Stre
(N/mm2) |
Executive St |
Use |

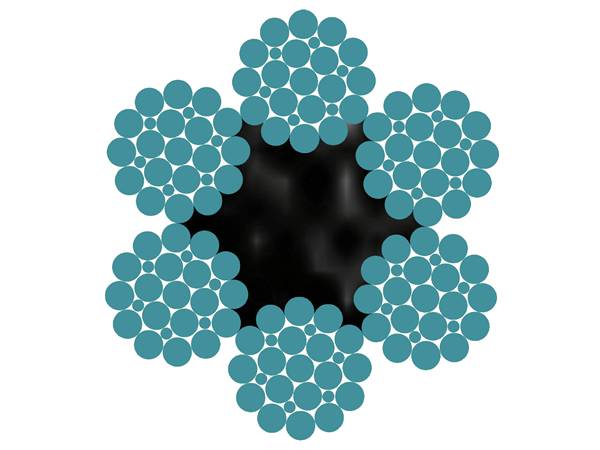

| 6 × 25 (Fi) |
8～50 |
1960—1570 |
|
All kinds of lift, towing & power shovel. |
| 6 × 19 (S) |
8～50 |
1960—1570 |
|
| 6 × 19 (W) |
8～50 |
1960—1570 |
Tested according to Din st, &GN1102-74 (china St) |
| 6 × 35 (W) |
8～50 |
1960—1570 |

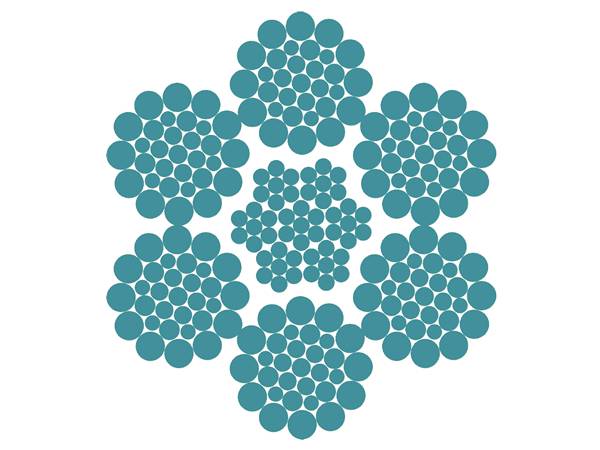

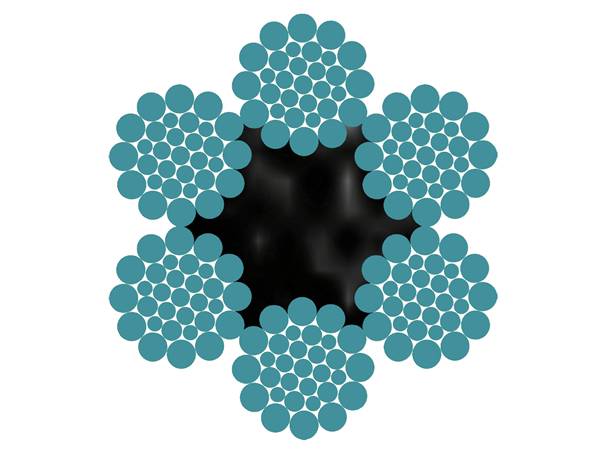

| 6 × 31 (SW) |
8～50 |
1960—1570 |

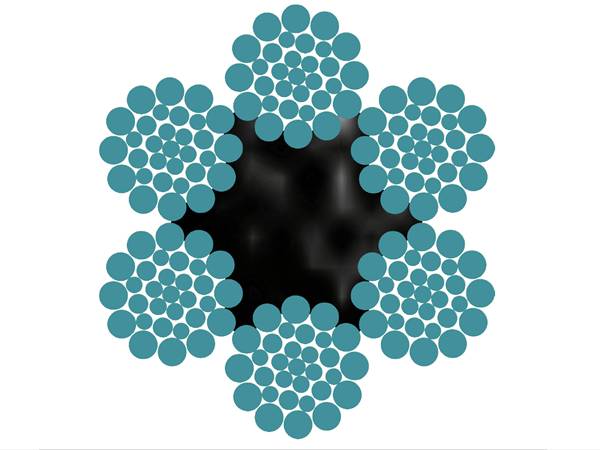

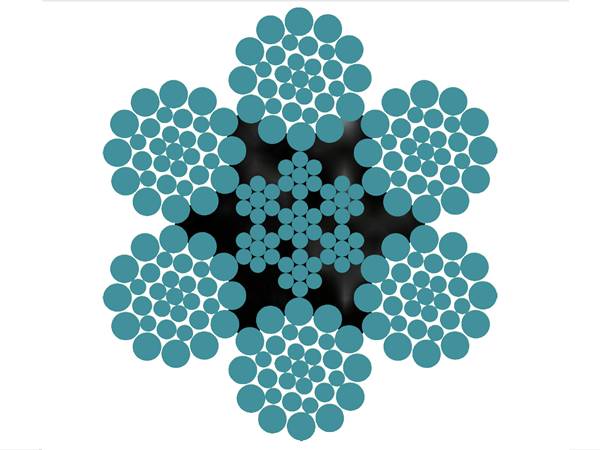

| 6 × 36 (SW) |
8～60 |
1960—1570 |
| 8 × 25 (Fi) |
10～60 |
1960—1570 |
Crane. |
| 8 × 19 (S) |
6～50 |
1960—1570 |
| 8 × 19 (W) |
10～50 |
1960—1570 |

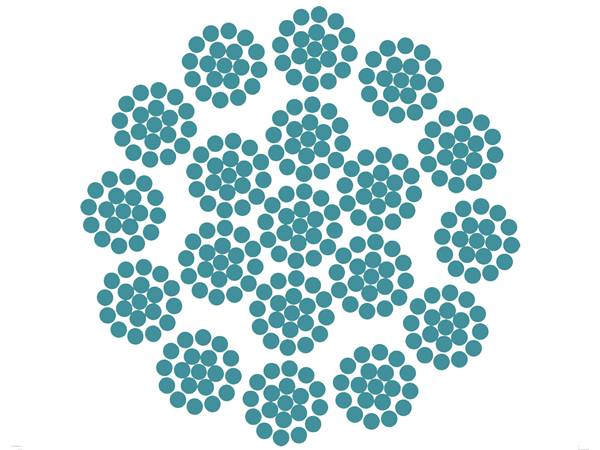

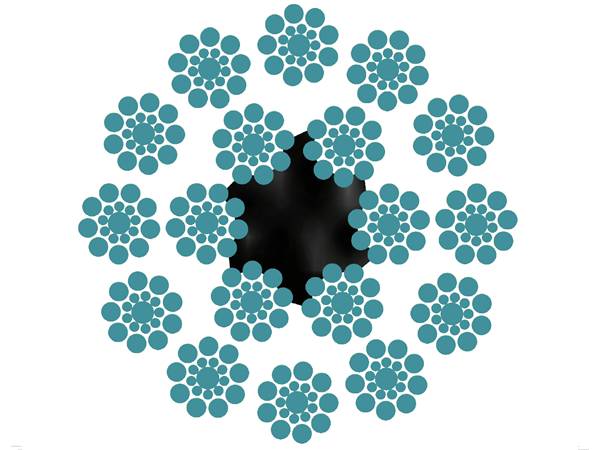

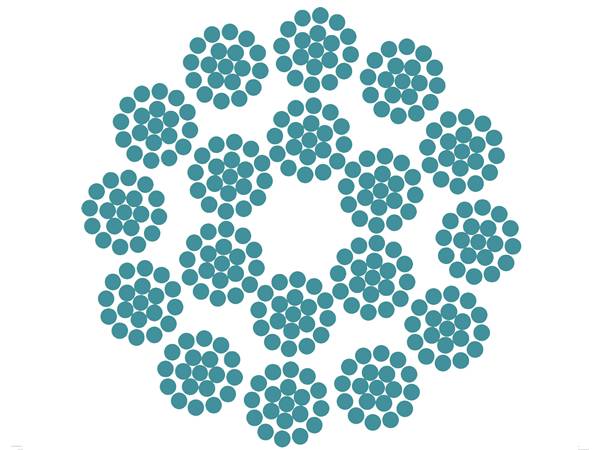

| 18 × 19 |
8～60 |
1960—1570 |
Tested according to GB8918-96 (China St) |
Crane & salvage. |

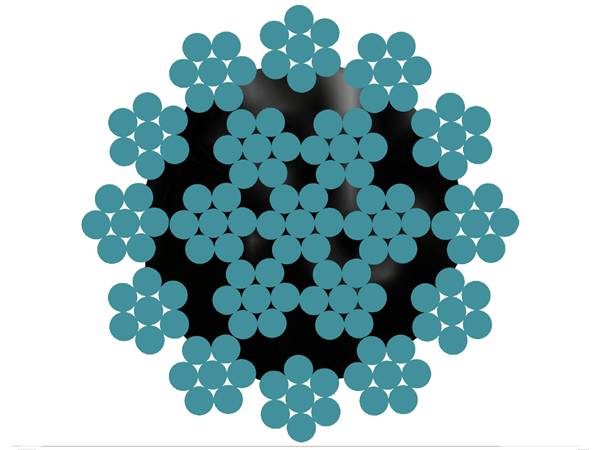

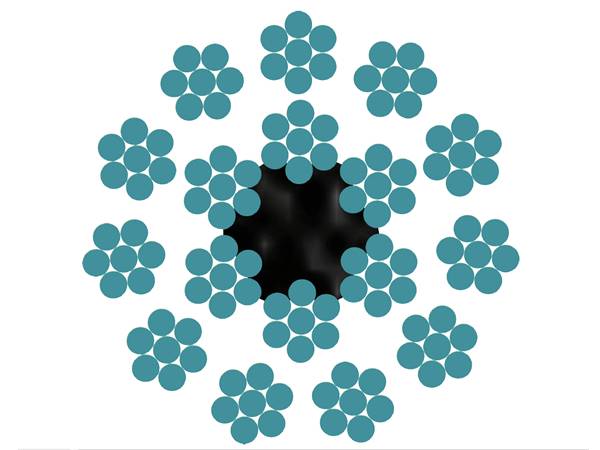

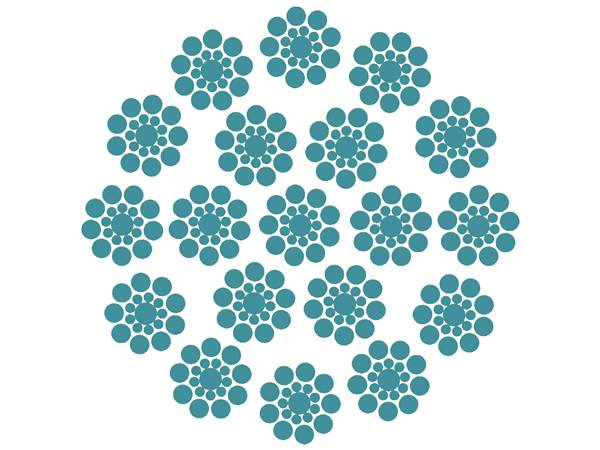

| 18 × 7 |
3～60 |
1960—1570 |

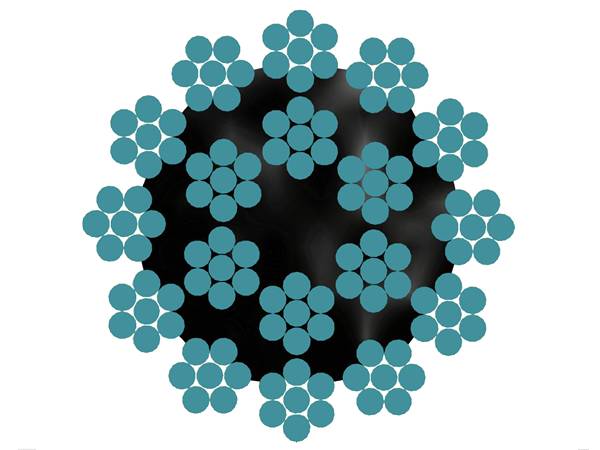

| 36 × 7 |
10～60 |
1960—1570 |
| 6 × 61 |
16～90 |
1960—1570 |
| Wire rope |
diameter (mm) |
| 6 × 19S FC Galvanized (A-1 LUBE) |
10mm - 28mm |
| 6 × 19S PP Core |
10mm - 28mm |
| 6 × 19S + IWRC Galvanized (A-1 LUBE) |
10mm - 32mm |
| 6 × 36 WS + IWRC Galvanized (A-1 Lube) |
10mm - 38mm |
| 6 × 36 WS + IWRC Galvanized (completely dry) |
10mm - 40mm |
| 6 × 7 FC galvanized dry |
10mm - 20mm |
| 6 × 10 IWRC bright (A-1 Lube) |
20mm - 30mm |
| 35 × 7NR Galv 2160gr. wire rope A-1 lube |
10mm - 24mm |
| 19 × 7 IWRC galvanized completely dry |
10mm - 20mm |

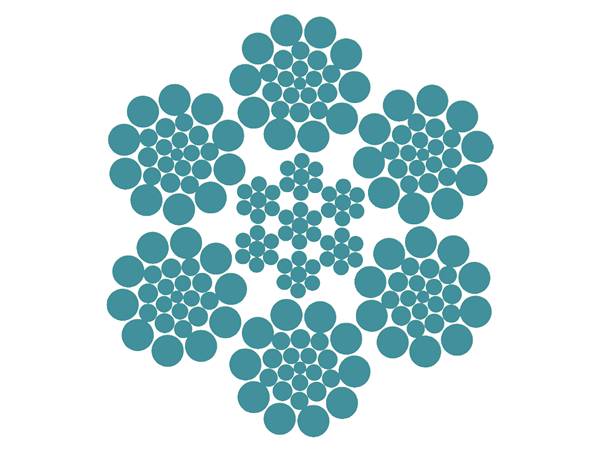

| 6 × 26WS IWRC, galvanized dry |
10mm - 32mm |
| 6 × 26WS IWRC, galvanized (A-1 Lube) |
12mm - 30mm |
| 7 × 19 IWRC Galvanized |
3mm - 12mm |
| 7 × 7 IWRC S.S. 304 wire rope |
1.40mm - 6.00mm |
