Lever Hoist

Lever Hoist

3/4, 1, 1 1/2, 2, 3, 6, and 9 Ton capacity

YuanBo lever hoists combine easy operation with a compact, reliable design that easily handles the real-world demands of contractor and industrial applications. Examples include day-to-day maintenance, machine repair, construction, service, and manufacturing operations. You'll find every job goes easier thanks to smooth, reliable lifting and pulling actions. Compact size and easy operation make the LB lever puller the "come along to take along" wherever you have a load to move.

Many Benefits From More Features:

Lever Hoist
  1. Take and use this hoist anywhere-including tight quarters-thanks to a compact design with low headroom.
  2. Shed weight, not strength, with rugged, all-steel construction that actually weighs less than comparable aluminum models.
  3. Get positive braking action with Weston-style load brake incorporating two moisture-resistant brake pads with four braking surfaces. Includes two brake pawls for additional reliability.
  4. Enjoy protection against dirt and moisture with a totally enclosed brake mechanism.
  5. Realize long life with machined, heat-treated, split load double reduction gears.
  6. Operate in close quarters with short, 15-degree recovery strokes, short steel handle and positive rubber grip.
  7. Patented spring-loaded freewheel mechanism allows easy adjustment of the load chain while safeguarding against inadvertent freewheeling under load.

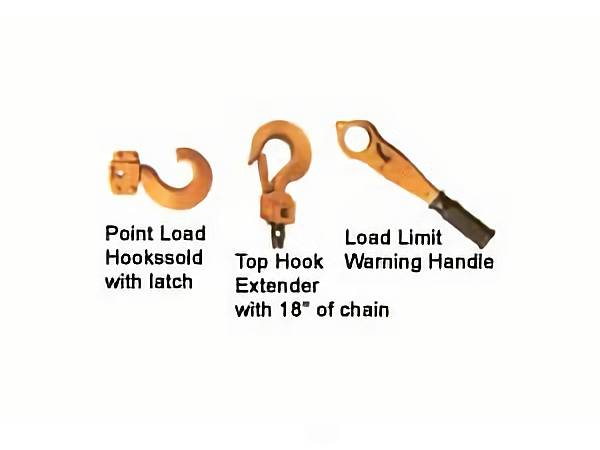

Options:

  1. Corrosion-resistant chain
  2. Load limit warning handle
  3. Point load hook
  4. Top hook extender
  5. Inspection hook

Capabilities to Count On:

  1. 5-foot lift is standard, 10-foot, 15-foot, and 20-foot lifts also stocked; nonstandard lifts available as well.
  2. Grade 100 heat-treated manganese alloy load chain resists abrasion and wear while minimizing chain weight.
  3. Forged and heat-treated alloy steel hooks open slowly without fracturing under excessive loads.
  4. Test certificate verifies that every hoist has been factory load tested to 125% of rated capacity, in accordance with ASME B30.21 requirements.

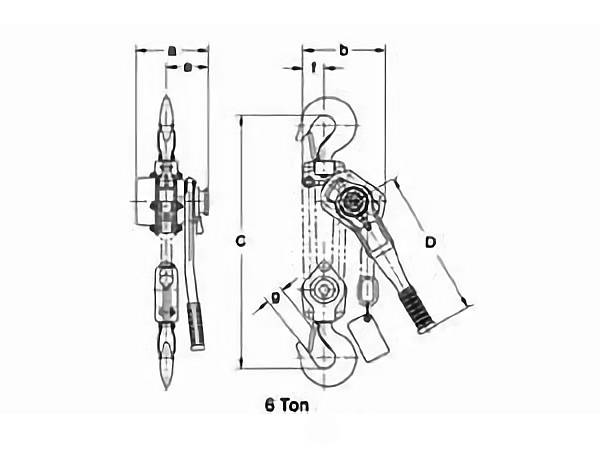

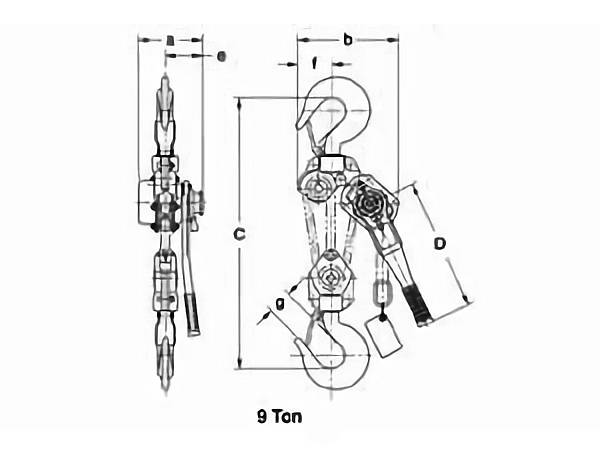

Lever Hoist Dimensions and Specifications

Cap.
(Tons)
Product
Code
Headroom
C
(in)
Std.
Lift
(ft)
Pull to Lift
Load (lbs)
a
(in)
b
(in)
D
(in)
e
(in)
f
(in)
g
(in)
Load Chain Diameter
(mm) × Chain Fall Lines
Net
Weight
(lbs)
Shipping Weight Approx. (lbs) Weight for Add One Foot of Lift (lbs)
3/4 LB008 11.0  5 58 6.0 4.8 10.4*  4.0  1.4 0.9 5.6 × 1 14   14 0.4
1 LB010 77
1 1/2 LB015 13.8 58 6.7 5.6   16.3     4.3 1.8 1.3 7.1 × 1 21   22 0.8
2 LB020 77
3 LB030 16.5 70 7.7 7.0 4.5   2.0 1.6 9.0 × 1 34 36 1.2
6 LB060 22.4 72 8.7 2.4 2.0 9.0 × 2 60 62 2.4
9 LB090 27.8 74 11.1 3.9 2.9 9.0 × 3 93 97 3.6
Lever Hoist
Lever Hoist
Lever Hoist
Lever Hoist
